Gravity: Waterproof DS18B20 Temperature Sensor Kit
SKU:
VENDEDOR: Puntocentral
¡Prisa! Solamente 0 ¡Quedaban en almacenaje!
Warrenty. No code needed, just head for checkout!
Free shipping. All orders are dispatched the next business day!
We will beat any price. We back all products with a 14 days guarantee.
Introduction

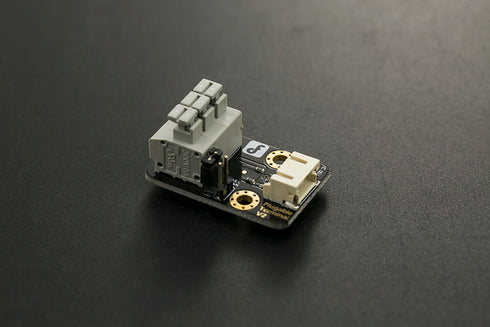

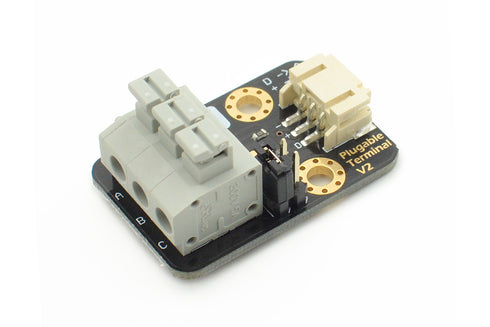

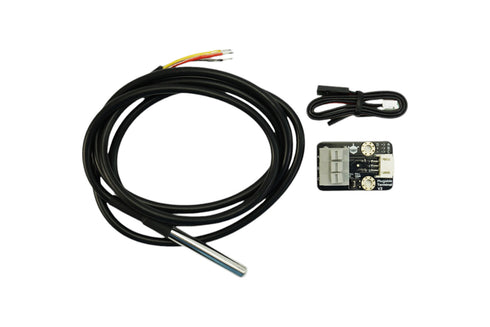

This waterproof temperature sensor kit features a DS18B20 probe with a resistor module. It includes a pluggable terminal adapter, making it easy to connect to the Arduino board without soldering.
The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface so that only one wire (and ground) needs to be connected from a central microprocessor. It is compatible with 3.0-5.5V systems.
For simple water purifier projects, it is recommended to use this kit together with Gravity: Analog TDS Sensor/Meter for Arduino.
Specification
- Operating voltage: 3.0~ 5.5V
- ±0.5°C Accuracy from -10°C to +85°C
- Usable temperature range: -55 to 125°C (-67°F to +257°F)
- 9 to 12-bit selectable resolution
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into chip
- Multiple sensors can share one pin
- Temperature-limit alarm system
- Query time is less than 750ms

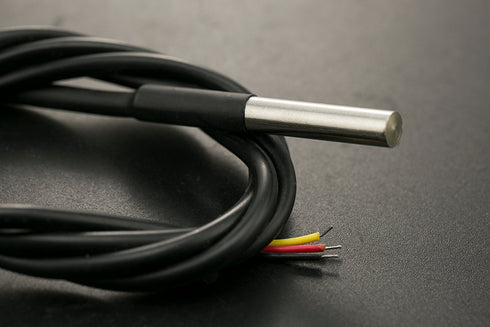

- 3 wires interface:
-
Type A
- Red wire - VCC
- Black wire - GND
- Yellow wire - DATA
-
Type B
- Red wire - VCC
- Yellow wire - GND
- Green wire - DATA
-
Type A

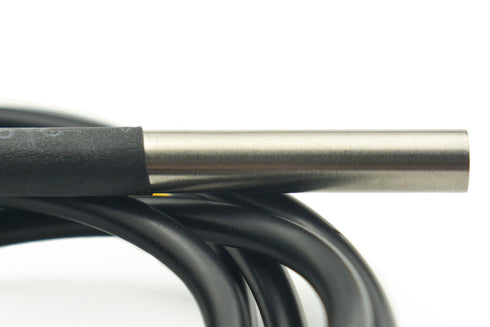

- Stainless steel tube 6mm diameter by 35mm(1.34") long
- Cable diameter: 4mm(0.16")
- Length: 90cm(35.43")
Documents
- Wiki Doc
